GMC Truck Fault Codes list DTC, P-codes

2000-05 GMC Fault Codes Engine P codes:



0030 HO2S Heater Control Circuit Sensor 1



0036 HO2S Heater Control Circuit Sensor 2



0101 MAF Sensor Performance



0102 MAF circuit low freq



0103 MAF circuit high freq



0107 MAP low voltage



0108 MAP high voltage



0112 IAT low voltage



0113 IAT high voltage



0117 ECT low voltage



0118 ECT high voltage



0121 TP sensor performance



0122 TP sensor low voltage



0123 TP sensor high voltage



0125 ECT insufficient temp for closed loop



0128 ECT (Eng Cool Temp) below thermostat regulating temp



0130 HO2S Closed Loop Performance Sensor 1



0131 HO2S low voltage Sensor 1



0132 HO2S high voltage Sensor 1



0133 HO2S slow response Sensor 1



0134 HO2S insufficient activity Sensor 1



0135 HO2S heater performance Sensor 1



0137 HO2S low voltage Sensor 2



0138 HO2S high voltage Sensor 2



0140 HO2S insufficient activity Sensor 2



0141 HO2S heater performance Sensor 2



0171 Fuel Trim lean



0172 Fuel Trim rich



0201 Injector 1 circuit fault



0202 Injector 2 circuit fault



0203 Injector 3 circuit fault



0204 Injector 4 circuit fault



0205 injector 5 circuit fault



0206 injector 6 circuit fault



0230 fuel pump relay control circuit



0243 SC boost solenoid control circuit error



0300 engine misfire detected



0301 Misfire cylinder #1



0302 Misfire cylinder #2



0303 Misfire cylinder #3



0304 Misfire cylinder #4



0305 Misfire cylinder #5



0306 Misfire cylinder #6



0325 knock sensor system fault



0327 knock sensor circuit fault bank 1



0332 knock sensor circuit fault bank 2



0335 CKP sensor A circuit



0336 CKP circuit fault/performance



0340 CMP sensor circuit



0341 CMP sensor performance



0385 CKP sensor B circuit



0401 EGR insufficient flow



0403 EGR solenoid control circuit fault



0404 EGR open position performance



0405 EGR position sensor low voltage



0410 Secondary Air Injection system



0412 Secondary Air Injection solenoid circuit



0418 Secondary Air Injection pump relay circuit



0420 catalyst system low efficiency



0440 EVAP system fault



0442 EVAP system small leak detected



0443 EVAP purge sol control faule



0446 EVAP VENT system performance



0449 EVAP VENT sol control circuit



0452 fuel tank pressure sensor low volt



0453 fuel tank pressure sensor hi volt



0462 fuel level sensor low voltage



0463 fuel level sensor high voltage



0480 cooling fan relay 1 control circuit



0481 cooling fan relay 2 control circuit



0506 idle speed too low



0507 idle speed too hi



0522 Eng Oil Pressure Sensor low volt



0523 Eng Oil Pressure Sensor hi volt



0530 A/C pressure sensor circuit fault



0560 PCM system voltage error



0601 PCM Read Only Memory Fault



0602 PCM not programmed



0603 PCM Long Term Memory Reset



0604 PCM Random Access Memory Fault



0605 PCM Programming Read Only Memory Fault



0606 PCM Internal Performance



0607 PCM Performance



0620 generator performance



0650 MIL control circuit



0654 Engine Speed Output Circuit



0656 fuel level output circuit



1106 MAP sensor circuit intermittent hi volt



1107 MAP sensor circuit intermittent low volt



1111 IAT sensor intermittent hi volt



1112 IAT sensor intermittent low volt



1114 ECT sensor intermittent low volt



1115 ECT sensor intermittent hi volt



1121 TPS intermittent hi volt



1122 TPS intermittent low volt



1133 HO2S insufficient switching sensor 1



1134 HO2S transition time ratio sensor 1



1189 Engine Oil Pressure Switch Circuit



1200 Air fuel ratio



1260 Fuel pump speed control relay circuit



1336 Crank Position System Variation not learned



1351 ign control (or coil 1) circuit hi volt



1352 ign bypass (or coil 2) circuit hi volt



1353 ign coil 3 circuit high volt



1354 ign coil 4 circuit high volt



1355 ign coil 5 circuit high volt



1356 ign coil 6 circuit high volt



1361 ign control (or coil 1) circuit low volt



1362 ign bypass (or coil 2) circuit low volt



1363 ign coil 3 circuit low volt



1364 ign coil 4 circuit low volt



1365 ign coil 5 circuit low volt



1366 ign coil 6 circuit low volt



1372 CKP sensor A-B correlation



1374 CKP high to low res freq correlation error



1380 misfire detect - no rough road data avail



1381 misfire detect - no comm w/ EBTCM



1404 EGR closed position performance



1406 Exhaust Gas Recirculation (EGR) Position Sensor Performance



1441 EVAP system flow during non-purge



1483 engine cooling system performance



1546 a/c relay control circuit



1554 cruise control feedback circuit error



1571 trac control torque req circuit error



1575 Extended Travel Brake Switch



1585 cruise control inhibit output circuit



1600 PCM Long Term Memory Reset (2)



1602 lost comm w/ EBTCM (ABS) system



1604 lost comm w/ Driver Info Display Control Sys



1605 lost comm w/ HVAC system



1610 lost comm w/ BCM



1621 PCM Long Term Memory Performance



1626 VATS fuel enable signal lost



1629 VATS fuel enable signal not rec'd



1630 VATS learn mode active



1631 VATS start enable signal not correct



1635 5 volt ref circuit 1



1637 charge system indicator lamp control circuit



1639 5 volt ref circuit 2



1640 Output Driver Module (ODM) Circuit 1 Error



1650 Output Driver Module (ODM) Circuit 2 Error



1653 fuel level OR low oil lamp output circuit



1660 Output Driver Module (ODM) Circuit 3 Error



1663 charging sys lamp OR change oil lamp circuit



1670 Output Driver Module (ODM) Circuit 4 Error



1673 Eng cool temp HOT lamp control circuit



1689 Trac control delivered torque output circuit


2000-05 GMC Fault Codes Transmission P codes:





0218 transmission fluid overtemperature



0502 VSS circuit low input



0503 VSS circuit intermittent



0711 trans fluid temp sensor range/performance



0712 trans fluid temp sensor circuit low input



0713 trans fluid temp sensor circuit high input



0716 input speed sensor circuit intermittent



0717 input speed sensor circuit low input



0719 brake switch circuit low input



0724 brake switch circuit high input



0730 incorrect gear ratio



0740 TCC enable solenoid circuit electrical



0741 TCC stuck off



0742 TCC stuck on



0748 pressure control solenoid circuit electrical



0751 shift solenoid A valve performance - no 1st or 4th gear



0752 shift solenoid A valve performance - no 2nd or 3rd gear



0753 shift solenoid A circuit electrical



0756 shift solenoid B valve performance - no 1st or 2nd gear



0757 shift solenoid B valve performance - no 3rd or 4th gear



0758 shift solenoid B circuit electrical



1810 trans fluid pressure valve position switch circuit



1811 maximum adapt and long shift



1814 Torque Converter Overstressed



1819 Internal Mode Switch (IMS) no start / incorrect range



1820 Internal Mode Switch (IMS) Circuit A Low



1822 Internal Mode Switch (IMS) Circuit B High



1823 Internal Mode Switch (IMS) Circuit P Low



1825 Internal Mode Switch (IMS) Invalid Range



1826 Internal Mode Switch (IMS) Circuit C High



1860 TCC PWM solenoid circuit electrical



1870 Trans component slipping



1887 TCC release switch circuit

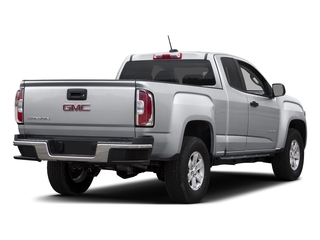

GMC Canyon
GMC Canyon

1997-99 Engine codes


101 MAF Sensor Performance


102 MAF circuit low freq


103 MAF circuit high freq


107 MAP low voltage


108 MAP high voltage


112 IAT low voltage


113 IAT high voltage


117 ECT low voltage


118 ECT high voltage


121 TP sensor performance


122 TP sensor low voltage


123 TP sensor high voltage


125 ECT insufficient temp for closed loop


131 HO2S low voltage Sensor


1132 HO2S high voltage Sensor


1133 HO2S slow response Sensor


1134 HO2S insufficient activity Sensor


1135 HO2S heater performance Sensor


1137 HO2S low voltage Sensor


1138 HO2S high voltage Sensor


2140 HO2S insufficient activity Sensor


2141 HO2S heater performance Sensor


2171 Fuel Trim lean


172 Fuel Trim rich


201 Injector 1 circuit fault


202 Injector 2 circuit fault


203 Injector 3 circuit fault


204 Injector 4 circuit fault


205 injector 5 circuit fault


206 injector 6 circuit fault


230 fuel pump relay control circuit


243 SC boost solenoid control circuit error


300 engine misfire detected


301 Misfire cylinder #1


302 Misfire cylinder #2


303 Misfire cylinder #3


304 Misfire cylinder #4


305 Misfire cylinder #5


306 Misfire cylinder #6


325 knock sensor system fault


327 knock sensor circuit fault bank 1


332 knock sensor circuit fault bank 2


335 CKP sensor A circuit


336 CKP circuit fault


340 CMP sensor circuit


341 CMP sensor performance


385 CKP sensor B circuit


401 EGR insufficient flow


403 EGR solenoid control circuit fault


404 EGR open position performance


405 EGR position sensor low voltage


410 Secondary Air Injection system


412 Secondary Air Injection solenoid circuit


418 Secondary Air Injection pump relay circuit


420 catalyst system low efficiency


440 EVAP system fault


442 EVAP system small leak detected


443 EVAP purge sol control faule


446 EVAP VENT system performance


449 EVAP VENT sol control circuit4


52 fuel tank pressure sensor low volt


453 fuel tank pressure sensor hi volt


462 fuel level sensor low voltage


463 fuel level sensor high voltage


480 cooling fan relay 1 control circuit


481 cooling fan relay 2 control circuit


506 idle speed too low


507 idle speed too hi


522 Eng Oil Pressure Sensor low volt


523 Eng Oil Pressure Sensor hi volt


530 A/C pressure sensor circuit fault


550 Power Steering Pressure switch circuit


560 PCM system voltage error


601 PCM Read Only Memory Fault


602 PCM not programmed


620 generator performance


650 MIL control circuit


654 Engine Speed Output Circuit


656 fuel level output circuit


705 trans range switch circuit


706 trans range switch performance


1106 MAP sensor circuit intermittent hi volt


1107 MAP sensor circuit intermittent low volt


1111 IAT sensor intermittent hi volt


1112 IAT sensor intermittent low volt


1114 ECT sensor intermittent low volt


1115 ECT sensor intermittent hi volt


1121 TPS intermittent hi volt


1122 TPS intermittent low volt


1133 HO2S insufficient switching sensor 1


1134 HO2S transition time ratio sensor 1


1257 Supercharger engine overboost


1260 Fuel pump speed control relay circuit


1336 Crank Position System Variation not learned


1350 Bypass line monitor


1351 ign control (or coil 1) circuit hi volt


1352 ign bypass (or coil 2) circuit hi volt


1353 ign coil 3 circuit high volt


1354 ign coil 4 circuit high volt


1355 ign coil 5 circuit high volt


1356 ign coil 6 circuit high volt


1361 ign control (or coil 1) circuit low volt


1362 ign bypass (or coil 2) circuit low volt


1363 ign coil 3 circuit low volt


1364 ign coil 4 circuit low volt


1365 ign coil 5 circuit low volt


1366 ign coil 6 circuit low volt


1372 CKP sensor A-B correlation


1374 CKP high to low res freq correlation error


1380 misfire detect - no rough road data avail


1381 misfire detect - no comm w/ EBTCM


1404 EGR closed position performance


1406 Exhaust Gas Recirculation (EGR) Position Sensor Performance


1441 EVAP system flow during non-purge


1483 engine cooling system performance


1520 Park/Neutral Position (PNP) switch circuit


1546 a/c relay control circuit


1554 cruise control feedback circuit error


1571 trac control torque req circuit error


1573 lost comm w/ EBTCM (ABS) system


1575 Extended Travel Brake Switch


1585 cruise control inhibit output circuit


1602 lost comm w/ EBTCM (ABS) system


1604 lost comm w/ Driver Info Display Control Sys


1605 lost comm w/ HVAC system


1610 lost comm w/ BCM


1619 Engine oil life monitor reset switch circuit


1626 VATS fuel enable signal lost


1629 VATS fuel enable signal not rec'd


1630 VATS learn mode active


1631 VATS start enable signal not correct


1635 5 volt ref circuit 1


1637 charge system indicator lamp control circuit


1639 5 volt ref circuit 2


1641 A/C clutch relay control circuit


1642 change engine oil lamp control circuit


1646 SC boost solenoid control circuit error


1651 cooling fan relay 1


1652 cooling fan relay 2


1653 fuel level OR low oil lamp output circuit


1662 cruise control inhibit output circuit


1663 charging sys lamp OR change oil lamp circuit


1665 EVAP VENT solenoid circuit


1667 Fuel pump speed control relay circuit


1671 MIL control circuit


1672 low engine oil level lamp control circuit


1673 Eng cool temp HOT lamp control circuit


1676 EVAP purge sol control circuit


1689 Trac control delivered torque output circuit



1997-99 Transmission P codes.



218 transmission fluid overtemperature


502 VSS circuit low input


503 VSS circuit intermittent


711 trans fluid temp sensor range/performance


712 trans fluid temp sensor circuit low input


713 trans fluid temp sensor circuit high input


716 input speed sensor circuit intermittent


717 input speed sensor circuit low input


719 brake switch circuit low input


724 brake switch circuit high input


730 incorrect gear ratio


740 TCC enable solenoid circuit electrical


741 TCC stuck off


742 TCC stuck on


748 pressure control solenoid circuit electrical


751 shift solenoid A valve performance


753 shift solenoid A circuit electrical


756 shift solenoid B valve performance


758 shift solenoid B circuit electrical


1810 trans fluid pressure valve position switch circuit


1811 maximum adapt and long shift


1814 Torque Converter Overstressed


1860 TCC PWM solenoid circuit electrical


1870 Trans component slipping


1887 TCC release switch circuit
